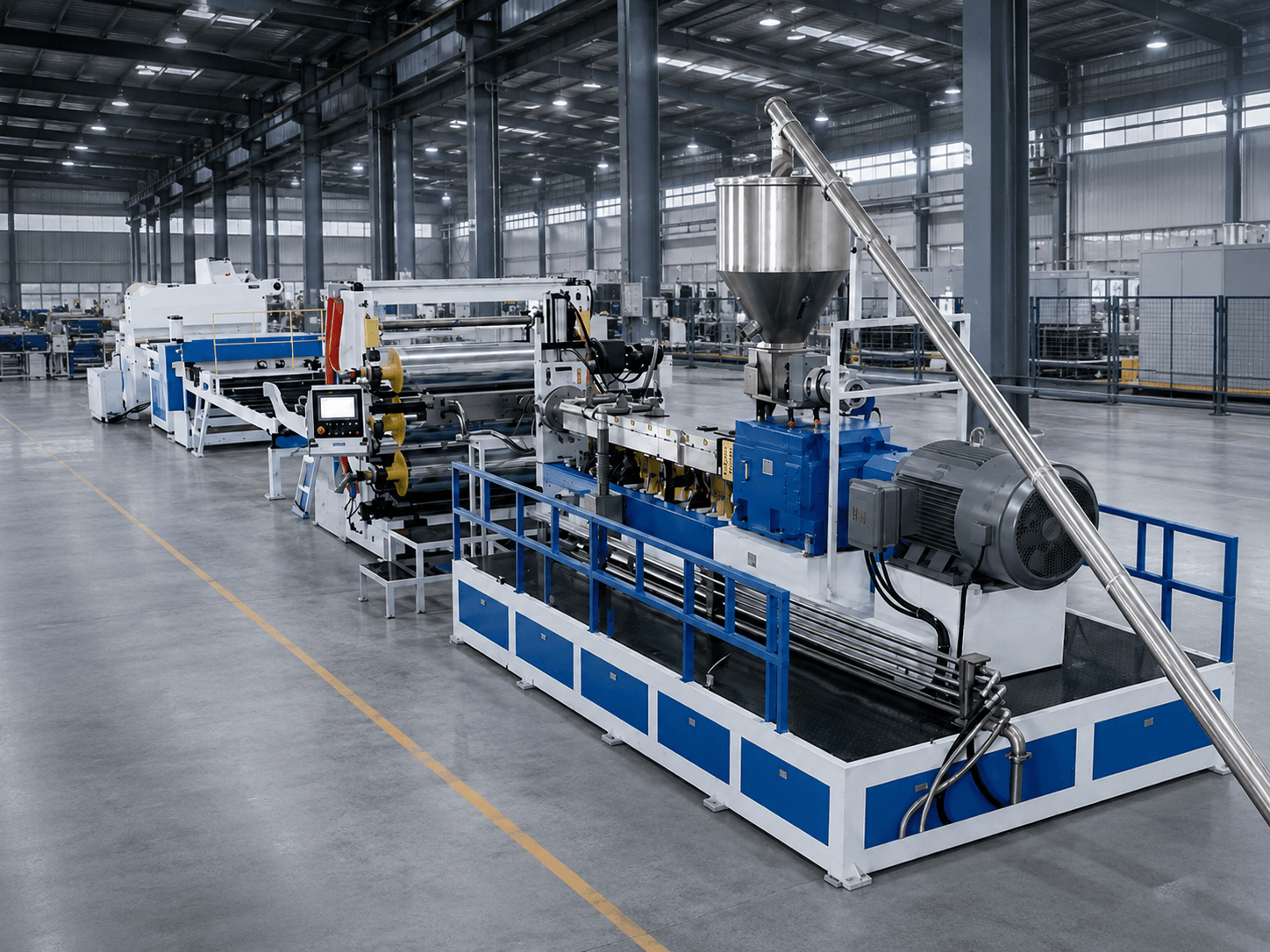

ABS Sheet Extrusion Line

Designed for ABS, HIPS, virgin and recycled materials, this line produces mono-layer or multi-layer sheets for refrigerator liners, luggage, automotive interiors, sanitary ware and industrial trays.

Product Advantages

• An optimized high-L/D mixing screw and precise multi-zone temperature control ensure thorough plasticization at lower temperatures, minimizing yellowing and gel defects while maintaining stable processing of recycled materials.

• The extended cooling and calibration section allows the sheet to release internal stress gradually, reducing uneven cooling, warpage and deformation during storage while improving the finished-product yield.

• Stable extrusion output ensures consistent sheet thickness, a smooth high-gloss surface and minimal surface ripples. The finished sheets offer excellent impact resistance, low-temperature performance and thermoformability.

• The screw, barrel and die are manufactured from wear-resistant alloy steel. A hydraulic screen changer reduces downtime, while the heavy-duty machine structure supports stable, continuous production.

Submit Project Requirements

Applications

  • Automotive Interior Components
  • Appliance Liners
  • Luggage Shells
  • Antistatic Electronic Trays
  • Sanitary Ware Products

Product Details

  • The ABS sheet extrusion line is designed for producing mono-layer ABS sheets. It can also be equipped with an auxiliary extruder to produce multi-layer co-extruded ABS sheets.

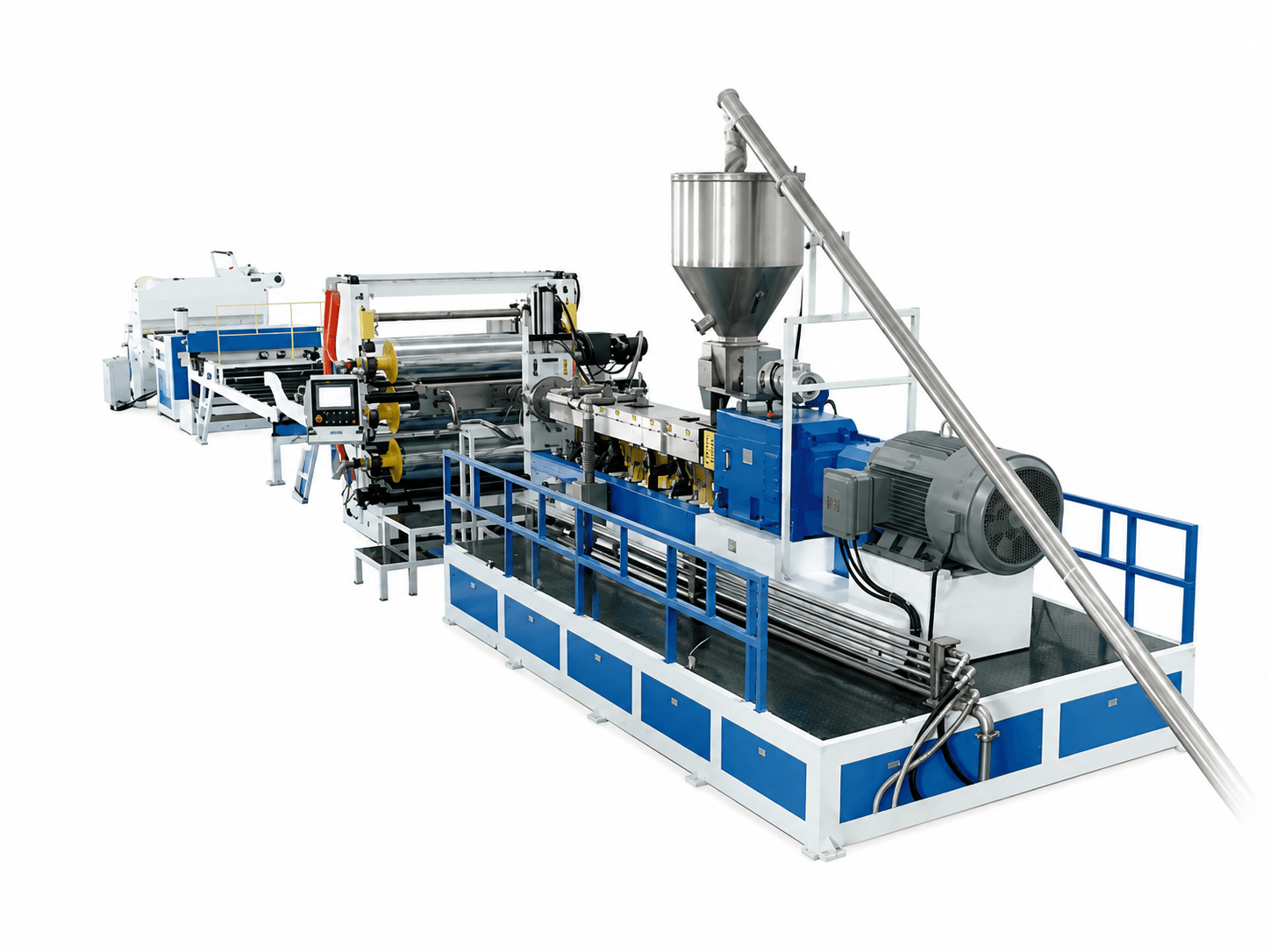

  • The complete line consists of a hot-air drying and feeding system, a high-torque single-screw extruder, a hydraulic screen changer, a coat-hanger T-die, a three-roll calendering and cooling unit, a haul-off and edge-trimming unit, a length-measuring system, a servo cut-to-length unit and an automatic stacking system.
  • The plasticizing and temperature-control systems are optimized for ABS and HIPS materials, ensuring stable extrusion output, consistent sheet thickness, a smooth surface and low internal stress. The finished sheets are resistant to warpage and cracking and offer excellent impact resistance, low-temperature performance, paintability, electroplating compatibility and thermoformability.
  • The line supports virgin materials and recycled production scrap. Sheet width, thickness, output capacity and the number of co-extruded layers can be customized according to the customer’s final product requirements.

Specifications

Product Type
ABS Sheet Extrusion Line
Main Extruder
High-Torque Single-Screw Extruder
Applicable Materials
ABS, HIPS, Virgin Materials and Recycled Materials
Sheet Structure
Mono-Layer Sheet / Multi-Layer Co-Extruded Sheet
Thickness Range
1–8 mm
Finished Sheet Width
1200–2100 mm
Output Capacity
400–600 kg/h
T-Die Brand
Jc-Times
Inverter Brand
ABB or Siemens
Control System
Siemens PLC Control System
Servo Motor
Siemens
Place of Origin
Zhejiang, China
Annual Manufacturing Capacity
150–180 Lines per Year
Certifications
CE, ISO 9001
Transportation Packaging
Wooden Cases and PE Protective Film
