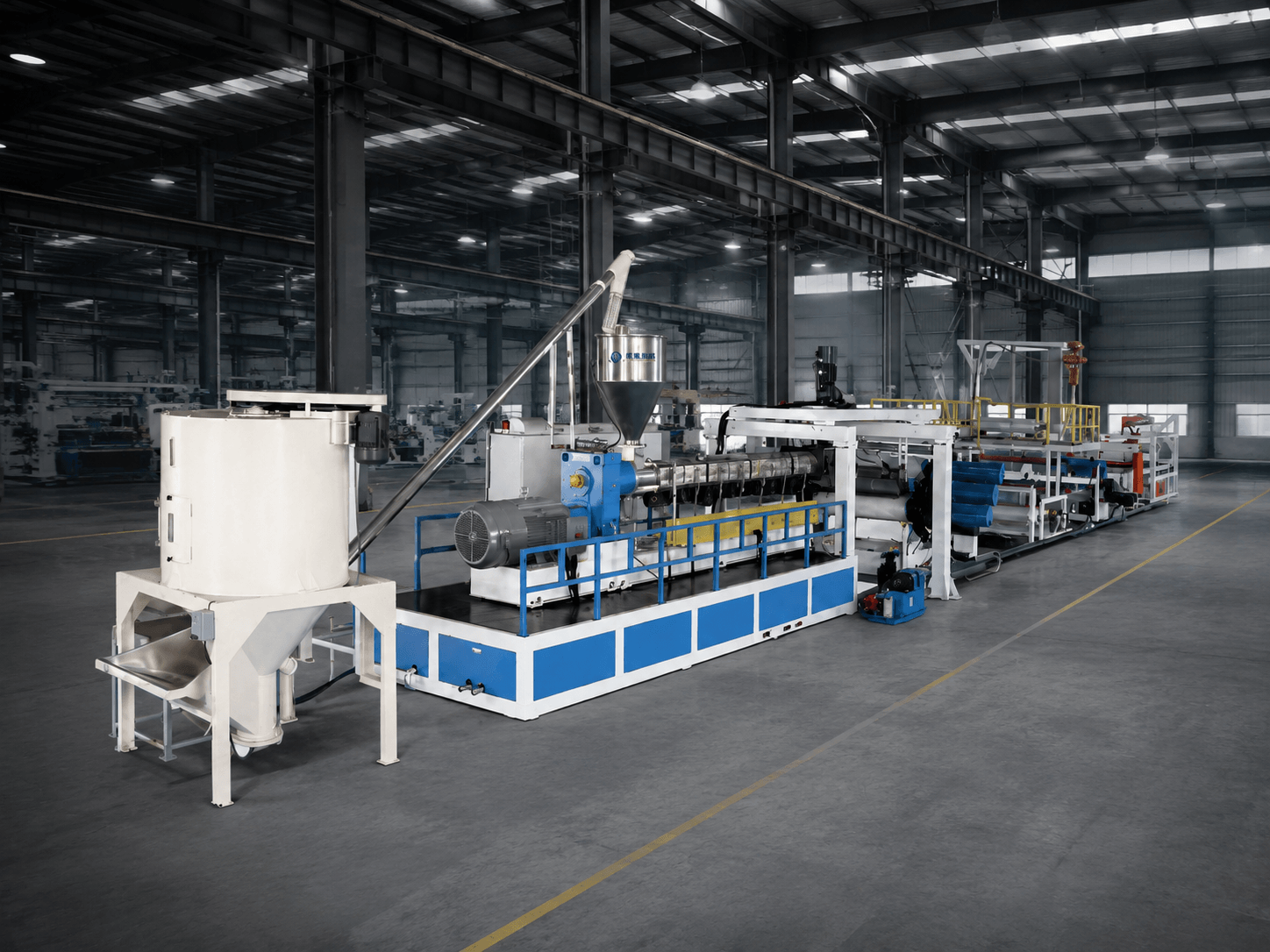

PMMA/GPPS Optical Sheet Extrusion Line

Designed for PMMA and GPPS, this line features optimized plasticizing, temperature control and cooling to produce clear, matte, colored and functional sheet for display, lighting and decoration.

Product Advantages

  • The extrusion and forming process is optimized for the optical and surface-quality requirements of transparent sheet, providing excellent light transmission, surface gloss and flatness.
  • A dedicated screw design and precise temperature-control system for PMMA and GPPS help reduce yellowing, excessive degradation and sheet breakage.
  • The three-roll calender uses mirror-finished rolls with independent temperature control to improve surface quality, thickness uniformity and dimensional stability.
  • Depending on the project configuration, the line can produce clear, matte, colored, light-diffusing and other functional sheets. Final effects depend on the material, formulation and roll design.
  • Stable line operation supports long-term continuous production. Optimized drive, temperature-control and cooling systems improve efficiency and reduce unnecessary energy consumption.
  • An optional multi-layer co-extrusion configuration can provide composite, antistatic or UV-resistant functions, subject to material compatibility and technical verification.
Submit Project Requirements

Applications

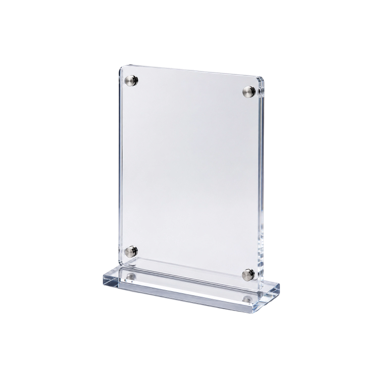

  • Transparent Display Panels

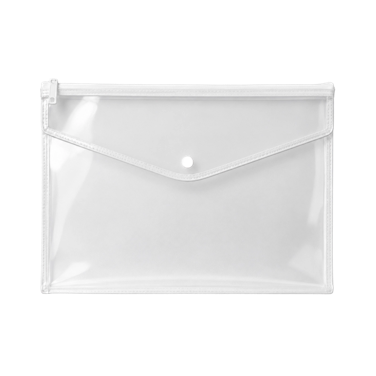

  • Document Bags

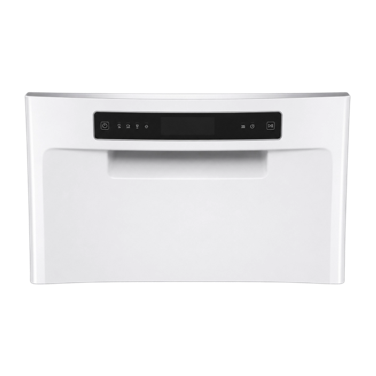

  • Appliance Panels

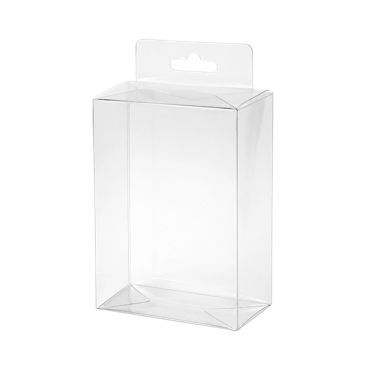

  • Transparent Packaging Boxes

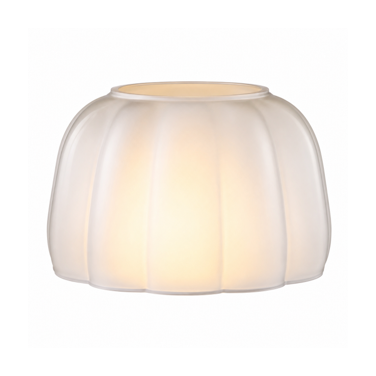

  • Lampshades
  • Toy Housings

Product Details

  • The PMMA/GPPS optical sheet extrusion line mainly consists of a dehumidifying drying and feeding system, a high-torque extruder, a hydraulic screen changer, a coat-hanger T-die, a mirror-finished three-roll calendering and cooling unit, haul-off and edge-trimming equipment, a winding or cut-to-length system, and a PLC control system.
  • The screw geometry, die flow channels, processing temperatures, roll temperatures and haul-off speed are coordinated to address the temperature sensitivity, brittleness and roll-sticking characteristics of PMMA and GPPS. This helps reduce yellowing, sheet breakage, roll sticking and surface defects.
  • The mirror-finished three-roll calender improves surface gloss, thickness uniformity and flatness while reducing deformation and warpage. Depending on the target product, the line can be configured for clear, matte, colored, light-diffusing, antistatic or UV-resistant sheets.
  • Sheet width, thickness, surface finish, collection method, functional structure and output capacity can be customized.

Specifications

Product Type
PMMA/GPPS Optical Sheet Extrusion Line
Main Extruder
High-Torque Extruder
Applicable Materials
PMMA, GPPS and Compatible Transparent or Functional Compounds
Drying System
Dehumidifying Drying and Feeding System
Finished Sheet Width
600–2000 mm
Sheet Thickness
0.6–3.0 mm
Output Capacity
400–1000 kg/h
Control System
PLC and Touchscreen Control
Die Type
Coat-Hanger T-Die
Collection Method
Winding or Cut-to-Length
Optional Functions
Matte, Colored, Light-Diffusing, Antistatic, UV-Resistant and Multi-Layer Co-Extrusion
