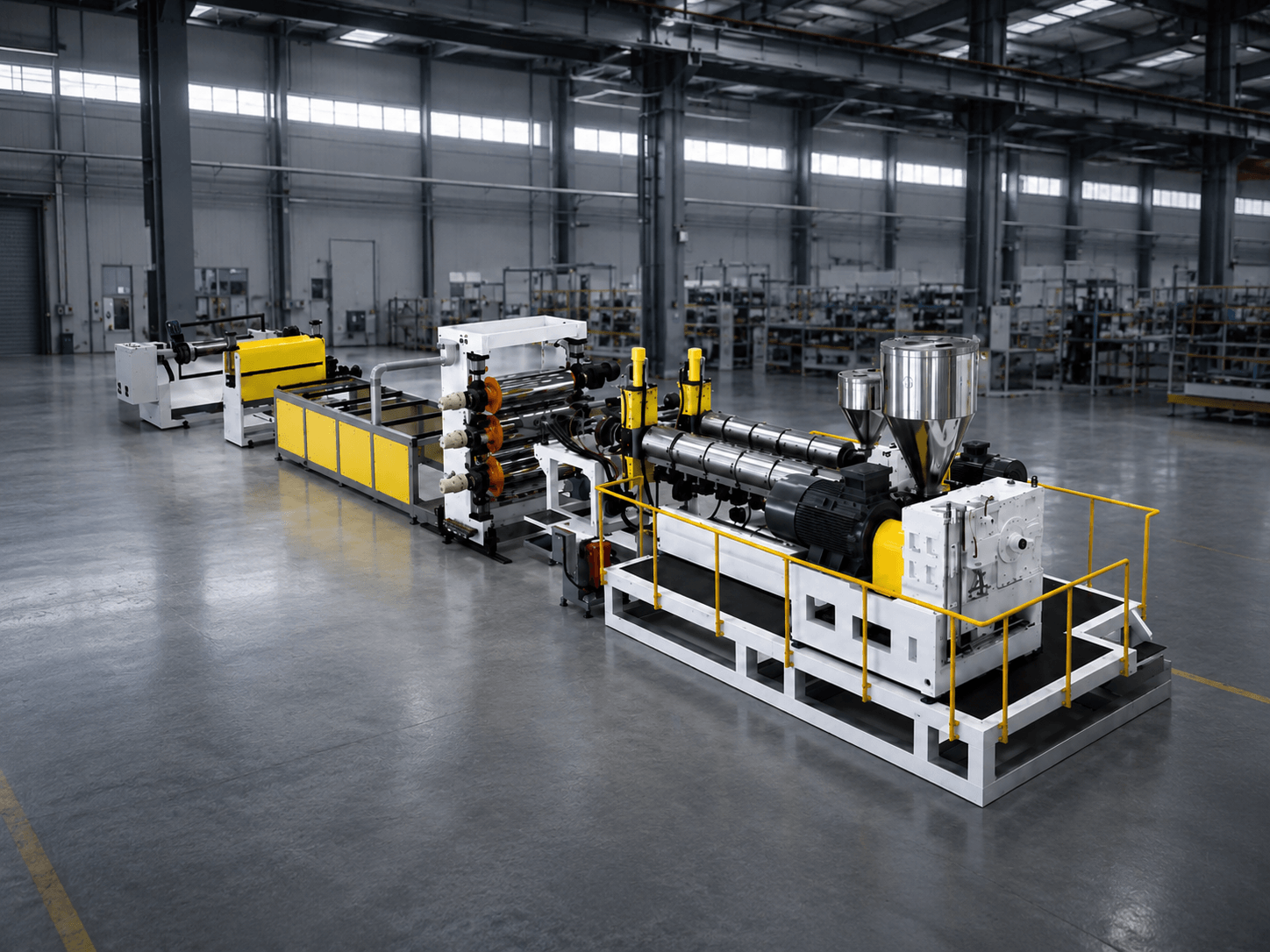

PP/PS Thermoforming Packaging Sheet Extrusion Line

Designed for single-layer PP, PS and HIPS sheet, this single-screw line integrates feeding, extrusion, calendering, haul-off and winding for thermoformed food, consumer and industrial packaging.

Product Advantages

  • The single-screw design and temperature-control process are optimized for PP, PS and HIPS, providing thorough mixing and uniform plasticizing while helping reduce PP sheet cracking and PS sheet yellowing.
  • The line can process virgin materials and qualified recycled materials. Optimized screw geometry, filtration and processing parameters improve the stability of recycled-material production.
  • After adjusting the screw configuration and processing parameters, the line can be used for PP, PS or HIPS sheet production, improving adaptability to different packaging applications.
  • The independently temperature-controlled three-roll calender improves cooling and forming efficiency, surface quality, flatness and thickness uniformity.
  • Siemens PLC and servo control centrally manage extrusion, temperature control, calendering, haul-off and winding for convenient operation and production-parameter management.
Submit Project Requirements

Applications

  • Thermoformed Food Packaging Boxes
  • Fresh and Frozen Food Trays

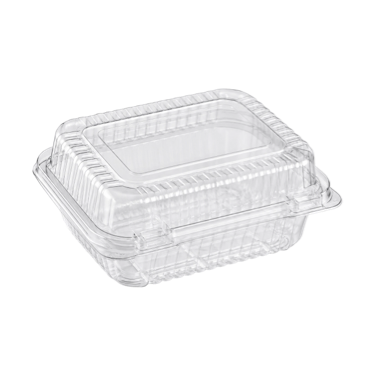

  • Disposable Takeaway Containers

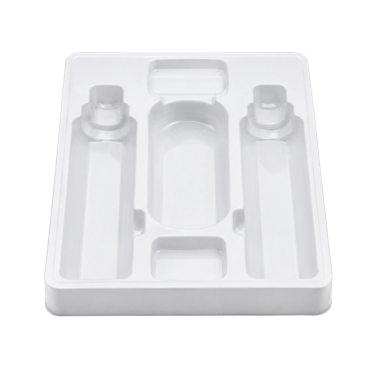

  • Consumer-Product Inserts
  • Ice Pop Trays

Product Details

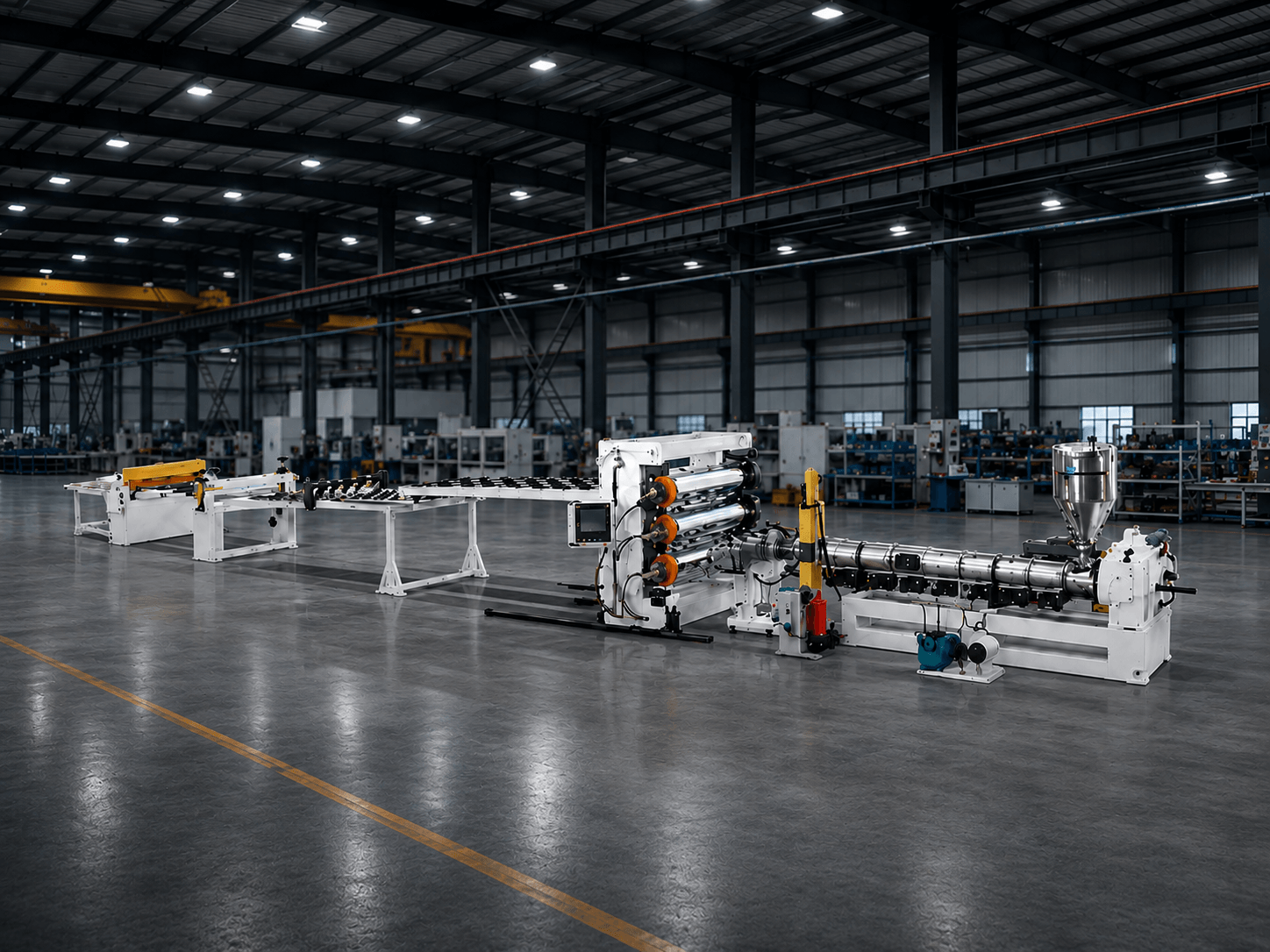

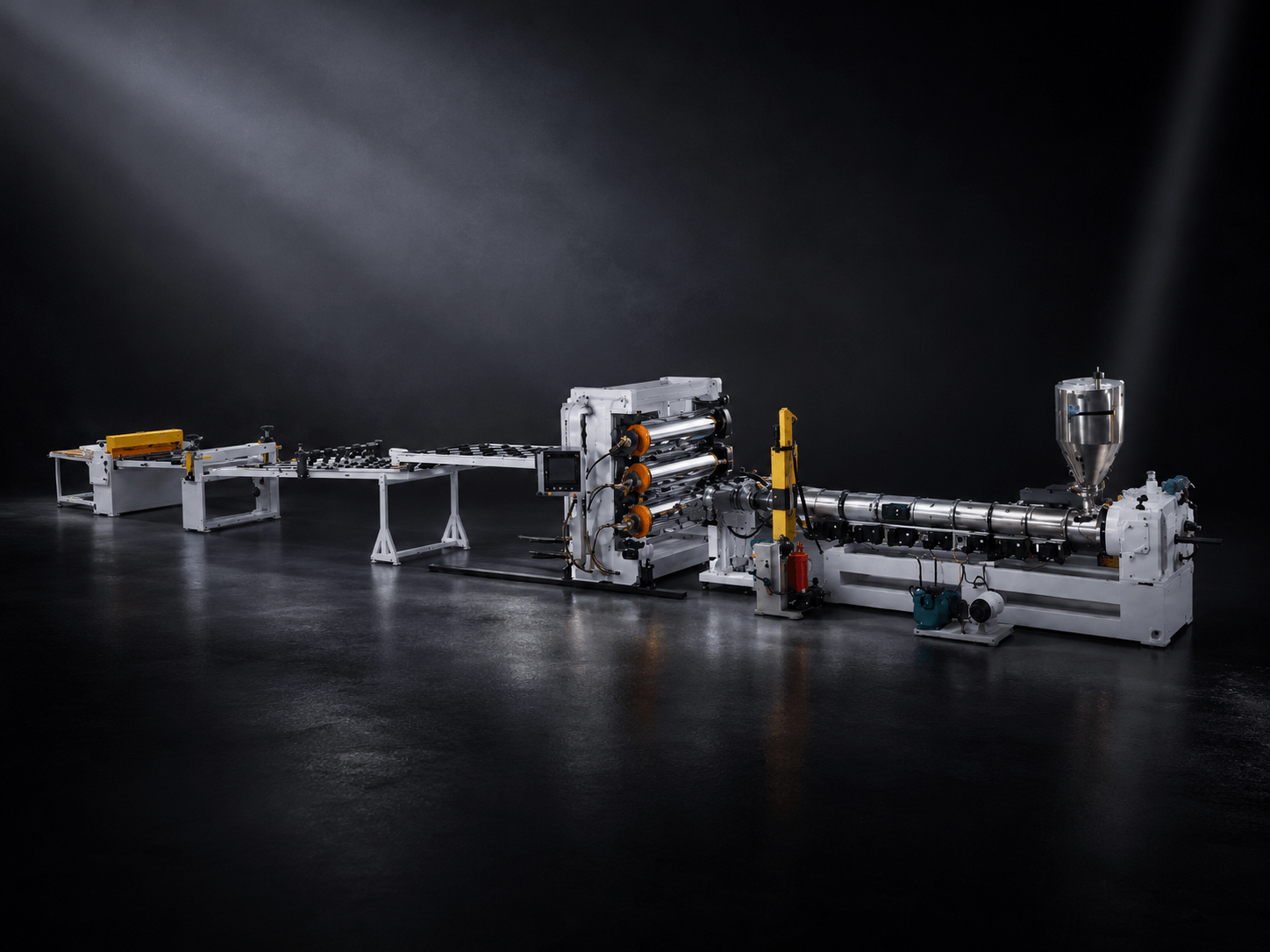

  • The PP/PS thermoforming packaging sheet extrusion line adopts single-screw extrusion technology. It mainly consists of an automatic feeding system, a single-screw extruder, a hydraulic screen changer, a coat-hanger T-die, an L-type three-roll calendering and cooling unit, haul-off and edge-trimming equipment, and a winding system.
  • Depending on the configuration, the line can produce single-layer PP, PS and HIPS sheets and can process virgin pellets and qualified recycled scraps. The screw geometry, filtration system, die flow channels, roll temperatures and haul-off speed can be adjusted according to the plasticizing temperature, flow characteristics and forming requirements of each material.
  • A PLC touchscreen control system centrally manages extrusion, temperature control, calendering, haul-off and winding. Stable extrusion and three-roll calendering help improve sheet flatness, thickness uniformity and downstream thermoforming performance.
  • Finished sheets are suitable for disposable food containers, fresh and frozen food trays, thermoformed food packaging, dairy and cold-drink packaging, consumer-product inserts, toy inserts and electronic component trays. Sheet width, thickness, output capacity and winding configuration can be customized.

Specifications

Product Type
PP/PS Thermoforming Packaging Sheet Extrusion Line
Main Extruder
Single-Screw Extruder
Applicable Materials
PP, PS, HIPS and Qualified Recycled Materials
Sheet Structure
Single-Layer Sheet
Sheet Thickness
0.2–2.0 mm
Finished Sheet Width
600–1500 mm, Customizable
Output Capacity
400–1500 kg/h
Available Screw Models
Φ120/35, Φ135/38 and Φ130/35
Control System
Siemens PLC and Servo Drive
T-Die Brand
Jc-Times
Inverter Brand
ABB or Siemens
Servo Motor
Siemens
Place of Origin
Zhejiang, China
Annual Manufacturing Capacity
150–180 Lines per Year
Certifications
CE, ISO 9001
Transportation Packaging
Wooden Cases and PE Protective Film
