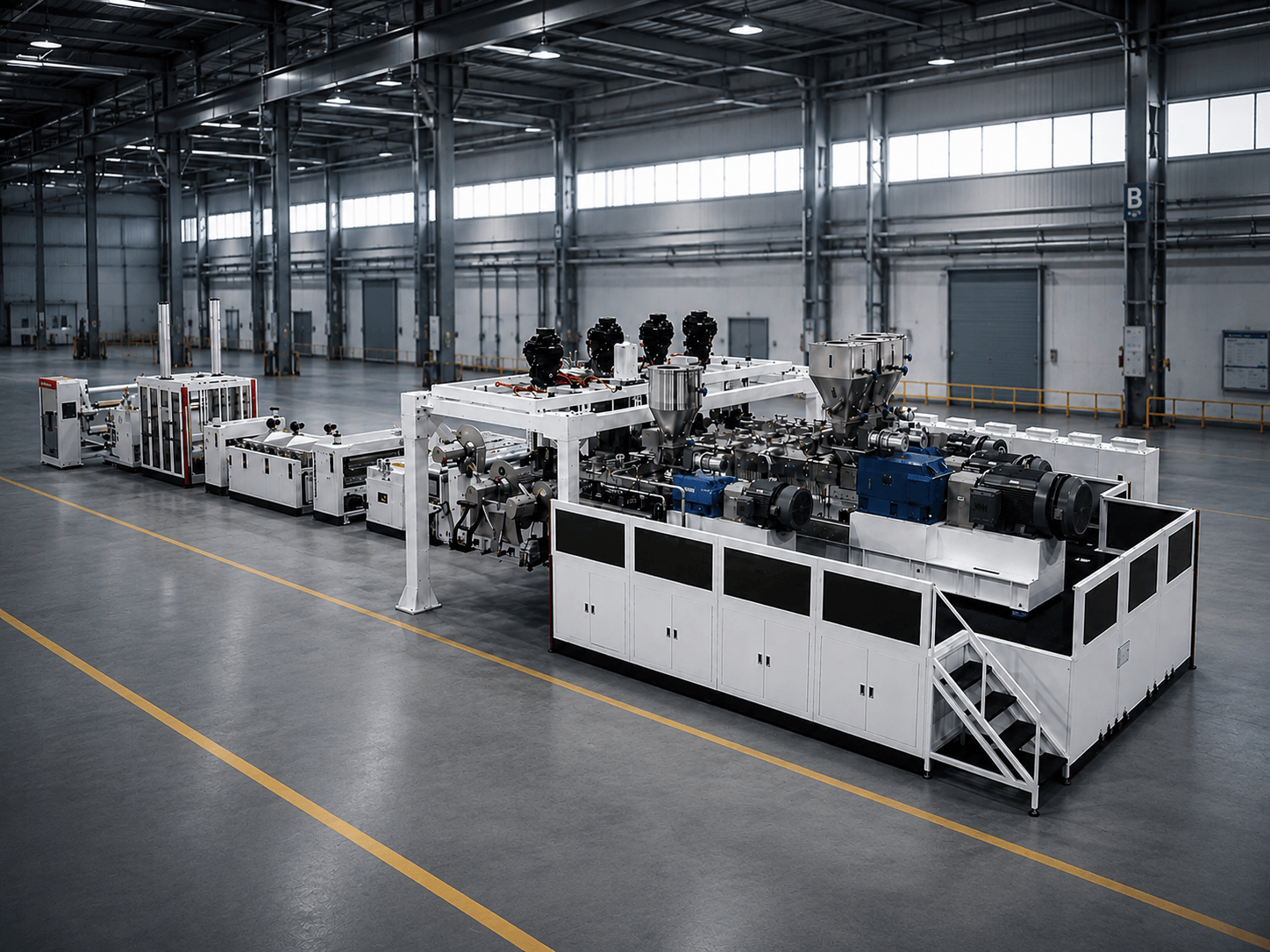

PET/PLA/PP/PS Multi-Layer Co-Extrusion Sheet Line

This line uses multiple independent extruders to produce 3- or 5-layer PET, PLA, PP and PS sheet with stable output, uniform layers and precise thickness control for thermoformed packaging.

Product Advantages

  • Optimized screw geometry and die flow-channel design ensure stable material output across each layer. The energy-efficient line configuration helps reduce power consumption during continuous production.
  • Supports sheet solutions for PET, PLA, PP and PS materials. Customized 3-layer or 5-layer co-extrusion configurations are available according to the target product and material structure.
  • Key wear-resistant components are manufactured from special alloy materials, providing stable operation, convenient maintenance, extended service life and lower maintenance costs.
Submit Project Requirements

Applications

  • Fresh Food Preservation Trays
  • Sealed Prepared Food Containers
  • Fresh Meat Barrier Packaging Boxes

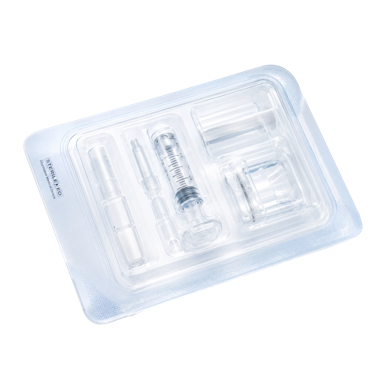

  • Medical Packaging
  • Heat-Resistant Baking Trays

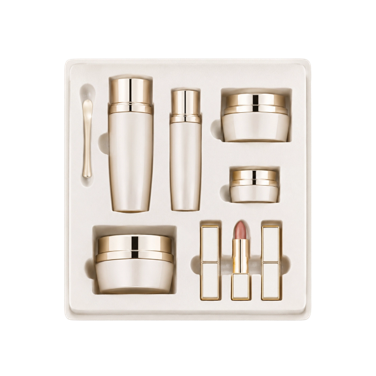

  • Cosmetic Packaging Inserts

Product Details

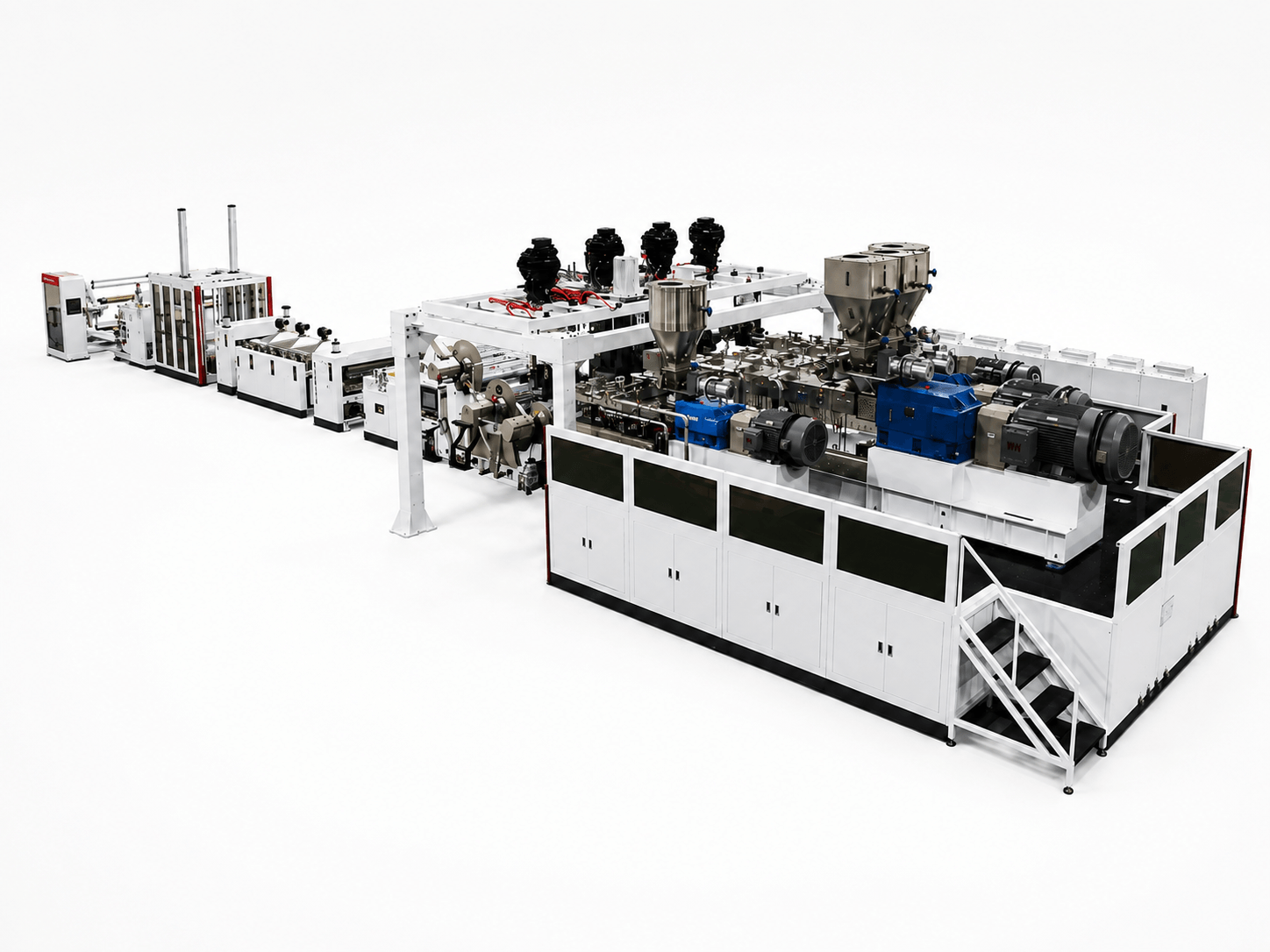

  • This multi-layer co-extrusion sheet line consists of multiple independent extruders, a precision feedblock, a coat-hanger T-die, an L-type three-roll calendering and cooling unit, haul-off and edge-trimming equipment, and a winding unit. It supports integrated production of 3-layer and 5-layer composite sheets.
  • Depending on the project configuration, the line can process PET, PLA, PP and PS materials and can support virgin materials and qualified recycled materials. The extruders, layer ratios, die flow channels, cooling system and downstream units can be configured according to the material properties and target sheet structure.
  • The complete line is equipped with a Siemens PLC control system for centralized management of extrusion, temperature control, forming, haul-off and winding. It provides a high level of automation, stable extrusion, uniform layer distribution and precise thickness control.
  • Finished sheets are suitable for thermoforming applications such as food packaging, medical packaging, disposable tableware, cosmetic containers and electronic component packaging. Output capacity, sheet width, layer structure and automation level can be customized.

Specifications

Product Type
Multi-Layer Plastic Sheet Co-Extrusion Line
Extruder Configuration
Multiple Independent Extruders, Configured According to Layer and Material Structure
Applicable Materials
PET, PLA, PP, PS and Qualified Recycled Materials
Sheet Structure
3-Layer or 5-Layer, Customizable
Finished Sheet Width
400–1500 mm, Customizable
Output Capacity
400–2000 kg/h
Control System
Siemens PLC and Servo Drive
Calender Configuration
L-Type Three-Roll Calender with Independent Temperature Control
T-Die
Brand Jc-Times
Inverter Brand
ABB or Siemens
Servo Motor
Siemens
Place of Origin
Zhejiang, China
Annual Manufacturing Capacity
150–180 Lines per Year
Certifications
CE, ISO 9001
Transportation Packaging
Wooden Cases and PE Protective Film
